75LPI Lens Specifications
|
Base Resin Material
|
APET
|
|
Gauge (Thickness)
|
0.45mm
|
|
Standard Sheet Sizes
|
510mm x 710mm / 20” x 28”
|
|
Direction of lenticulars
|
Parallel to sheet 510mm (20”)
|
|
Lenses Per Inch
|
75 LPI
|
|
Lenses Pitch
|
0.3364 (+/-0.002)
|
|
Viewing Angle
|
49 degrees
|
|
Viewing Distance
|
0.15 meter to 2.5 meter
|
|
Images Effect
|
3D, Flips, Animation, Morph, Turning, Zoom
|
|
Storage Requirements
|
20-35℃
|
|

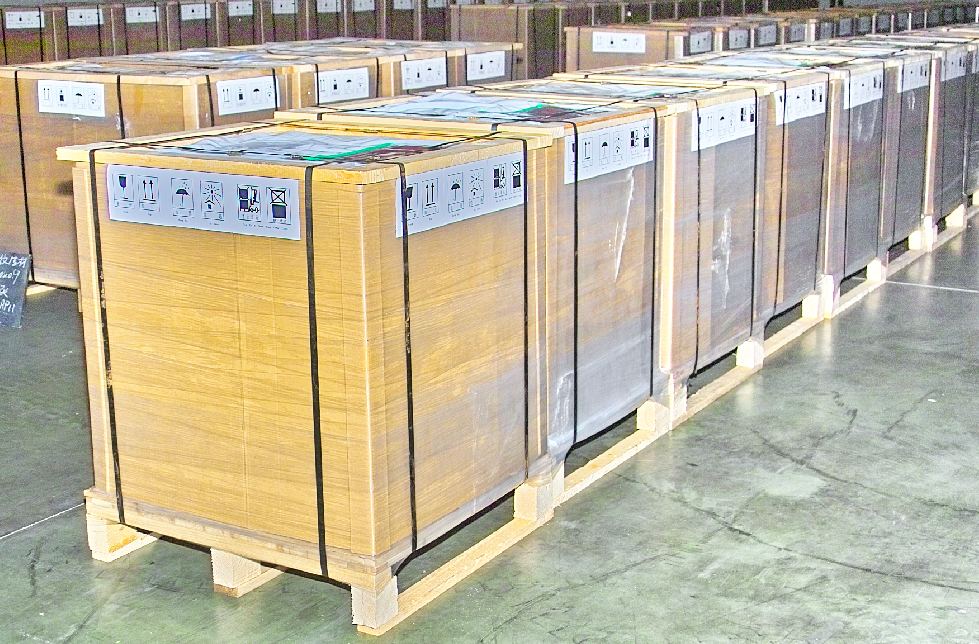

Standard Pack
|
1500sheet per wooden pallet
|
|
Packing Measurement
|
760mm x 560mm x 860mm
|
|
Gross Weight/Net Weight
|
327kg/314kg
|
100LPI Lens Specifications
|
Base Resin Material
|
APET
|
|
Gauge (Thickness)
|
0.35mm
|
|
Standard Sheet Sizes
|
510mm x 710mm / 20” x 28”
|
|
Direction of lenticulars
|
Parallel to sheet 510mm (20”)
|
|
Lenses Per Inch
|
100 LPI
|
|
Lenses Pitch
|
0.2552 (+/-0.002)
|
|
Viewing Angle
|
62 degrees
|
|
Viewing Distance
|
0.05 meter to 1.7 meter
|
|
Images Effect
|
3D,Flips,Morph,Zoom and super fine images
|
|
Storage Requirements
|
20-35℃
|
|
Standard Pack
|
2000 sheets per pallet
|
|
Packing Measurement
|
765mm x 565mm x 840mm
|
|
Gross Weight/Net Weight
|
327kg/313kg
|
161LPI Lens Specifications
|
Base Resin Material
|
APET
|
|
Gauge (Thickness)
|
0.30mm
|
|
Standard Sheet Sizes
|
510mm x 710mm / 20” x 28”
|
|
Direction of lenticulars
|
Parallel to sheet 510mm (20”)
|
|
Lenses Per Inch
|
161 LPI
|
|
Lenses Pitch
|
0.1569 (+/-0.002)
|
|
Viewing Angle
|
46 degrees
|
|
Viewing Distance
|
0.15 meter to 1.5 meter
|
|
Images Effect
|
3D, Flips, Zoom and super fine images
|
|
Storage Requirements
|
20-35℃
|
|
Standard Pack
|
2000 sheets per wooden pallet
|
|
Packing Measurement
|
765mm x 565mm x 780mm
|
|
Gross Weight/Net Weight
|
295kg/280kg
|
40LPI Lens Specifications
|
Base Resin Material
|
ACRYLIC RESIN
|
|
Gauge (Thickness)
|
2mm
|
|
Standard Sheet Sizes
|
1300mm x 1000mm (50" x 40"inch)
|
|
Direction of lenticulars
|
Parallel to sheet 1000mm (40”)
|
|
Lenses Per Inch
|
40 LPI
|
|
Lenses Pitch
|
0.6162 (+/-0.002)
|
|
Viewing Angle
|
39 degrees
|
|
Viewing Distance
|
1.5 meter to 6 meter
|
|
Images Effect
|
3D Depth and Fine Images
|
|
Storage Requirements
|
20-35℃
|
|
Standard Pack
|
200 sheets per pallet
|
|
Packing Measurement
|
1340mm x 1040mm x 550mm
|
|
Gross Weight/Net Weight
|
675kg/624kg
|
21 LPI Lens Specifications
|
Base Resin Material
|
ACRYLIC RESIN
|
|
Gauge (Thickness)
|
3mm
|
|
Standard Sheet Sizes
|
1200mm x 2400mm (47" x 94"inch)
|
|
Direction of lenticulars
|
Parallel to sheet 2400mm (94”)
|
|
Lenses Per Inch
|
21 LPI
|
|
Lenses Pitch
|
1.1884 (+/-0.002)
|
|
Viewing Angle
|
39 degrees
|
|
Viewing Distance
|
2 meter to 6 meter
|
|
Images Effect
|
3D Depth
|
|
Storage Requirements
|
20-35℃
|
|
Standard Pack
|
200 sheets per pallet
|
|
Packing Measurement
|
2440mm x 1240mm x 720mm
|
|
Gross Weight/Net Weight
|
2250kg/2116kg
|
25 LPI Lens Specifications
|
Base Resin Material
|
P.S. RESIN
|
|
Gauge (Thickness)
|
2mm
|
|
Standard Sheet Sizes
|
1300mm x 1500mm (50" x 60"inch)
|
|
Direction of lenticulars
|
Parallel to sheet 1500mm (60”)
|
|
Lenses Per Inch
|
25 LPI
|
|
Lenses Pitch
|
0.9928 (+/-0.002)
|
|
Viewing Angle
|
53 degrees
|
|
Viewing Distance
|
1.5 meter to 6 meter
|
|
Images Effect
|
3D Depth
|
|
Storage Requirements
|
20-35℃
|
|
Standard Pack
|
200 sheets per pallet
|
|
Packing Measurement
|
1540mm x 1340mm x 550mm
|
|
Gross Weight/Net Weight
|
675kg/624kg
|
*Specifications are subject to change without notice and for informational purposes only.

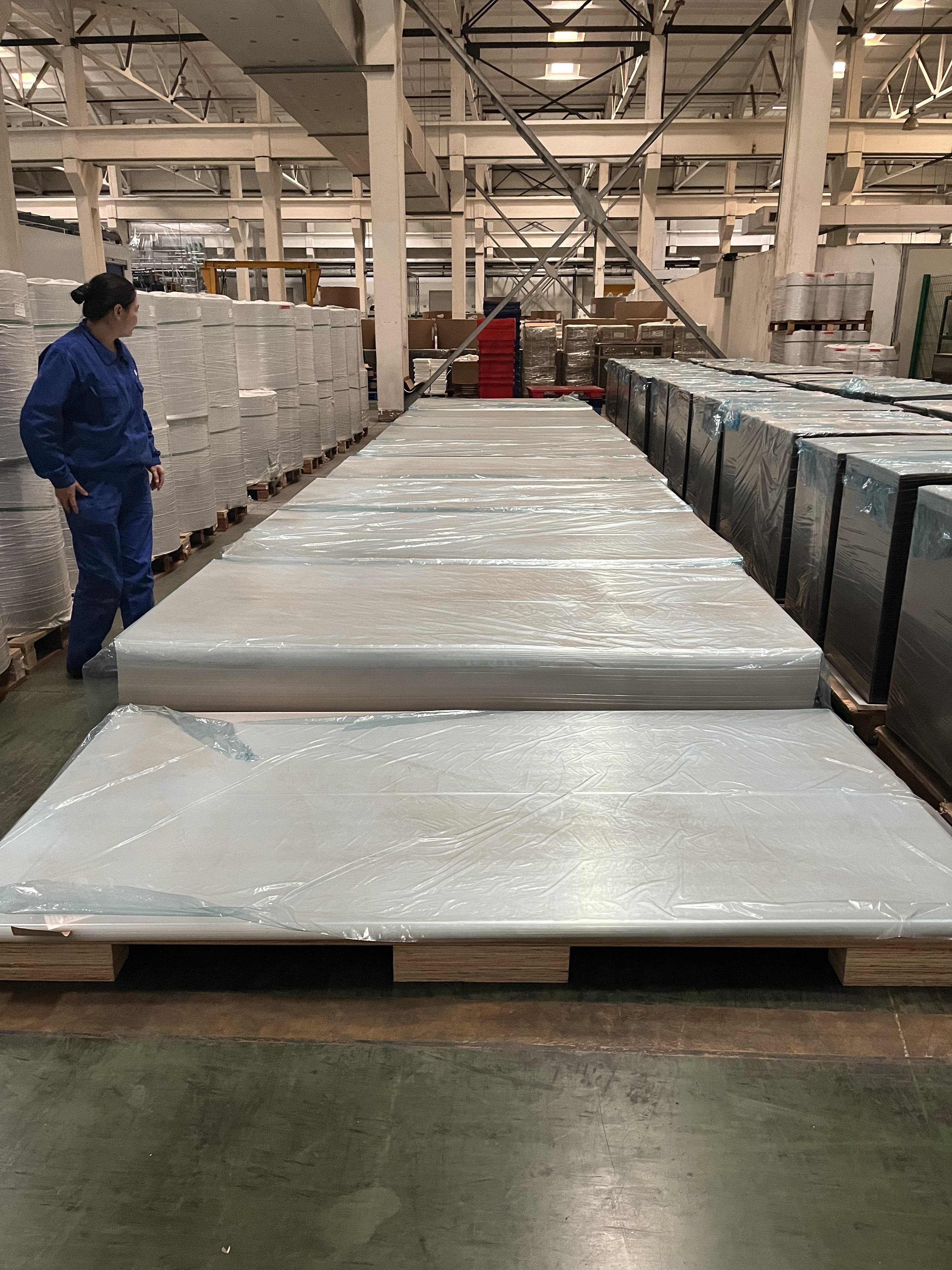

Largest format Lenticular board:-
The lens specially designed for the large format 3D depth images poster markets.
The images printed on paper and laminating on lenticular board through our 3D lenticular laminator model:LM501
|
